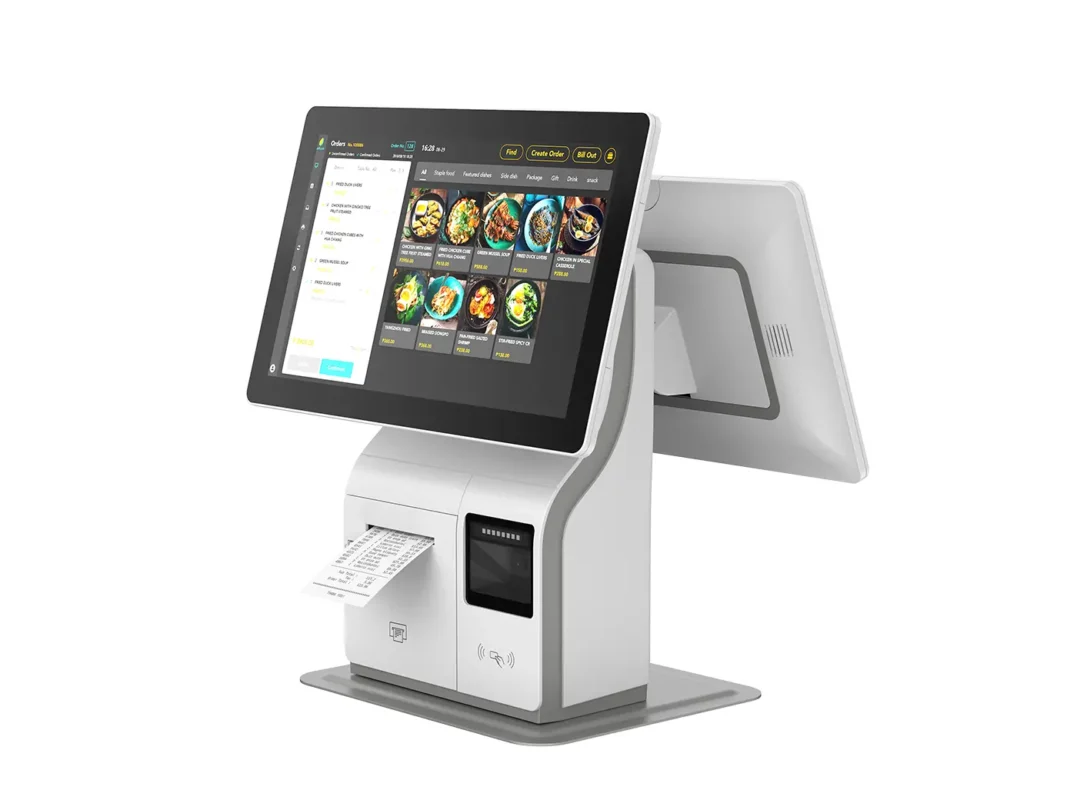

CNV-155H Dual Horizontal Screen Self Service Cashier Terminal
CNV-155H
-
Dual 15.6-inch landscape screen design for more complete information display.
-
RK3568 next-generation 64-bit quad-core CPU, featuring high stability, low power consumption, and strong decoding capabilities.
-
Built-in commercial-grade 80mm high-speed thermal printer, supporting receipt, order, and ticket printing.
-
High-sensitivity QR code scanner capable of recognizing paper codes and screen codes, with fast recognition speed and high success rate.
-
Android system platform for smoother operation, easier maintenance, and compatibility with various merchant software and ordering/POS systems.
-
3* USB 2.0/1*USB 3.0 OTG debugging ports, supporting external cash drawer RJ12/RJ11 serial ports.
-
Supports in-depth application development and API code integration.
-
OS supports Android system; Windows is customizable.
Customization Service
We can configure this device according to your specific requirements. To provide you with the best service, please briefly describe your project if you require this service.
Description
Product Features
- Dual-screen, unidirectional design: the main screen for user operation and the secondary screen for advertising/auxiliary information display.
- Both screens are 15.6-inch high-definition displays, offering a wide interface suitable for displaying product lists, payment interfaces, and advertisements.
- Supports synchronous or asynchronous dual-screen display to meet different business logic needs.
- High-speed thermal printer supports various settlement receipts and order vouchers, offering high-speed printing and low-noise operation, suitable for continuous printing during peak periods.
- Front-mounted structure facilitates paper roll replacement, improving maintenance efficiency.
- High-sensitivity barcode scanner with built-in supplementary lighting, suitable for various environments including strong and low light.
- Made of durable PC+ABS plastic, lightweight and easy to install.
- Complete with USB, RJ45, and serial ports, suitable for connecting more external POS peripherals.
- Suitable for high-intensity, continuous business environments.
Application Advantages
- Smart retail self-service checkout is suitable for convenience stores, supermarkets, fresh food stores, and unmanned retail stores.
- The dual horizontal screens display content more clearly,the upper screen is used for advertising/membership activities, while the lower screen provides the user interface, improving user experience and average order value.
- Supports functions such as QR code payment, member identification, and coupon redemption.
- Widely applicable to fast food restaurants, tea shops, milk tea shops, and self-service restaurants.
- Users can order and pay independently, while the advertising screen continuously displays promotional content, increasing store exposure value.
- The dual horizontal screens allow for displaying more content, improving information reading efficiency.
- Stable, durable, and easy to maintain, suitable for rapid deployment in chain stores.
- The plastic casing offers better cost-effectiveness, suitable for bulk purchases.
Application software development API docking technical support
Support deep software development and adaptation, provide system call interface API reference code, perfectly solve customer's upper level application APP development and debugging, and lead customer to develop application software
15.6-inch dual-screen horizontal high-definition touchscreen display
Resolution: 1920 × 1080
Display area: 344mm × 194mm
Brightness: 250cd/m ²
Aspect ratio: 16:9
Response time: 20ms
Perspective: 170 ° (H)/170 ° (V)
Service life (minutes): 30000 hours
Display color: 16.7M (8-bit)
The touch points of the capacitive screen are: 10 points
CNV-155H self-service terminal specification parameters
Motherboard (optional) | X86 | Android |
OS | Windows10/Linux | Android 11 |
CPU | J1900/I3/I5 | RK3568 |
ROM | 64GB/128GB/256GB | 16GB/32GB/64GB(EMMC) |
RAM | 4GB/8GB | 2GB/4GB/8GB(LPDDR) |
Touch | Capactive Touch | Capactive Touch |
Display | 15.6inch*2 | 15.6inch*2 |
Printer | 80mm | 80mm |
QR Scanner | Yes | Yes |
4G | Not Supported | optional |
NFC | Not Supported | optional |
Port | usb*6/serial port/Lan/ear phone/mic | usb*4/RJ45/RJ11/RJ12/4G sim/TF |
E-pos | optional | optional |
Speaker | 5W×1 | 5W×1 |
Camera | 3D/None | 3D/None |
Input voltage | DC12V7A | DC12V7A |
Operating Temperature | -10℃～60℃ | -10℃～60℃ |
Storage Temperature | -20℃～60℃ | -20℃～60℃ |
Working Humidity | 10%～90%RH | 10%～90%RH |
Storage Humidity | 5%～90%RH | 5%～90%RH |

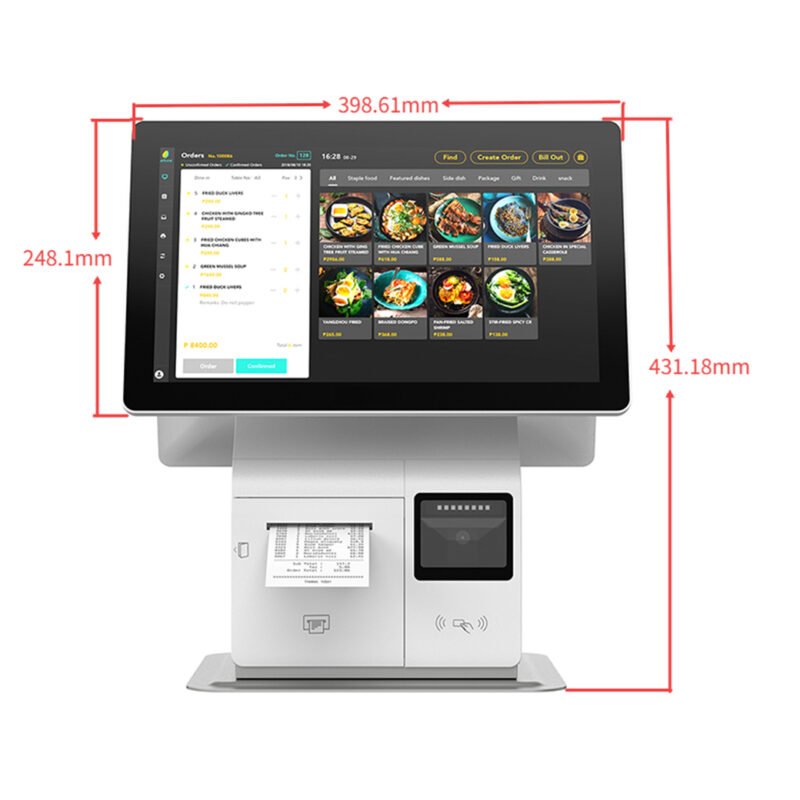

Size | W:39.6*H:30*D:12.2cm | W:39.6*H:30*D:12.2cm |
Weight(desktop-style) | G.W：10KG | G.W：10KG |
